Overview

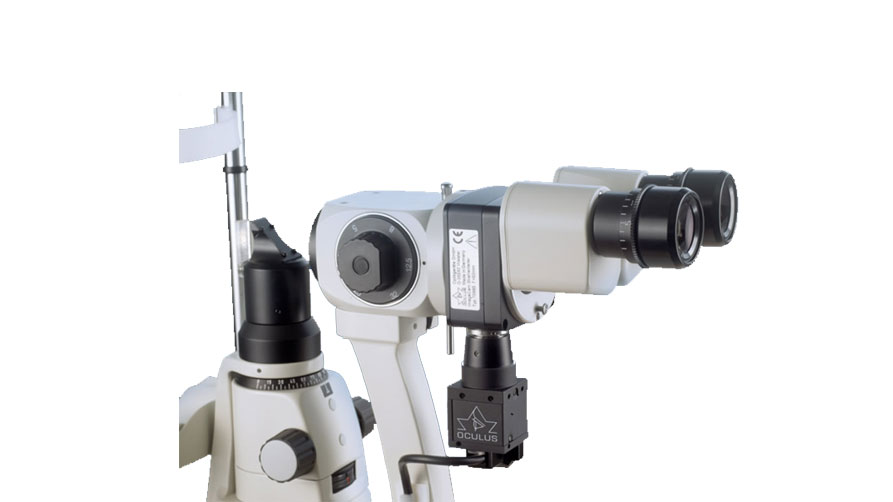

The Oculus Imagecam 2 is one of the smallest digital slit lamp camera systems. A slit lamp image or video sequence is taken by the high resolution, digital video camera in the beam path of the slit lamp. Exposure time, light magnification and white balance can be easily adjusted with its user-friendly software. Suitable exposure parameters, for taking pictures in different segments of the eye such as anterior segment, fundus, sclera etc. can be stored conveniently under appropriate names.
Features
Beam splitter
• Compact size increases slit lamp length minimally
• Prism can be moved in and out of the beam path of the slit lamp:
o Out: no optical impairment
o In: maximum light for taking pictures
• Adjustable aperture for greater depth of field:
o bright image taking situation – small aperture, more depth of field for sclera and overview in anterior segment
o dark image taking situation – large aperture, lower depth of field for fundus and fluo images, but more light for the camera
Software
• Patient data management program
• Live image shown on monitor
• Single image or video sequence
• Single image mode for detailed images and four image mode for comparison
• Loupe function
• Comment field for notes
• Image optimization possible (color, brightness, contrast,…)
• Storage of selected images on hard disk
• Printout of selected images
• Image release by mouse click or footswitch
Slit lamp – adaptions
The ImageCam 2 is adaptable to common slit lamps in the market.
Combine the ImageCam 2 with your OCULUS Keratograph
It is possible to connect the ImageCam 2 software with the Keratograph software. Compare the simulated fluo-images of the Keratograph with the real fluo-images taken by slit lamp.
Full Specifications
|
Camera |
digital camera 2 megapixel |
|
Interface |
USB-2 |
|
Dimensions (H x W x D) |
1.34 x 1.26 x 1.35 inches (34 x 32 x 34,4 mm) |
|
Weight Beam splitter |
2.61 ounces (74 g) |
|
Splitter rate |
70/30 (camera / view) |
|
Splitter prism |
can be swiveled in and out |
|
Aperture |
adjustable |
|
Weight Software |
11.82 – 16.93 ounces (335 g – 480 g, as per model) |
|
Network compatible Minimum Requirements |
image viewer – image processing – camera control – print and export function Picture format: JPG, JPG2000, BMP Video format: MPEG |
|
Laptop: |
WIN 2000, Windows XP Prof. SP2 or Windows Vista Home Premium CPU: AMD Turion 64 MT-32 / Pentium m Dothan 730 RAM: 1024 MB HD: 40 GB Display: XGA (1024 x 768), WXGA (1280 x 800) Drive: CD/RW or DVD/RW 2 free USB 2.0-interfaces, one of them unshared |
|
PC: |
CPU: Intel P4 3,6 Ghz / AMD according to RAM: 1024 MB HD: 40 GB Display: SXGA (1280 x 1024) Drive: CD/RW or DVD/RW 2 free USB 2.0-interfaces, one of them unshared |
